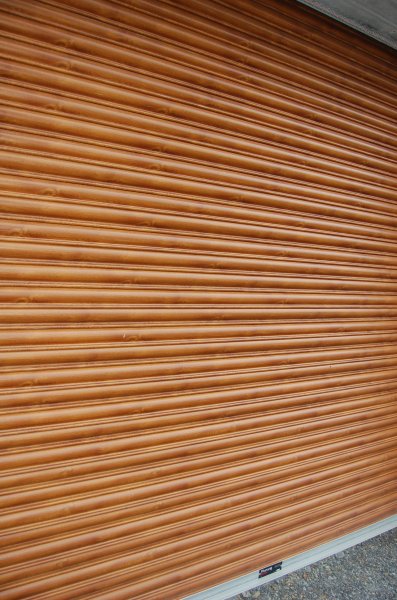

Residential Heavy Duty Roller Door

The Fleming Residential Heavy Duty Roller Door is designed with security and the harsh Irish wind and weather in mind.  It application is ideal for garages and units.  All doors are designed and made to measure.

Manufacture Product Name Reference
Fleming Doors Residential Heavy Duty Roller Door  FD-RHD-75


For strength and durability the curtain is interlocking galvanised steel laths 75mm in height, secured laterally by endlocks riveted to both ends on alternative laths. Bottom lath galvanised T bar.  Guides are rolled from galvanised steel and heavy duty barrel.

End Plates

The endplates for the safety brake and motor unit are manufactured from mild steel plates of varying thickness and incorporate the necessary fixing positions for securing back to the opening structure.


Standard finish is galvanised steel curtain and guides with non-galvanised components.

Door curtain, guides, end plates and canopy can be supplied BS EN 12206-1 polyester powder coated (PPC) to the Fleming Doors Colour Range of 30 no BS and RAL colours.

  • Non-standard colours are available on request.
  • PVC curtain also available

Electric operated

All Fleming Doors are Electric operated for ease of use and have a back up winding handle for manual operation.

Ask about a remote pack, key switches for outside access.


Maximum dimensions 3450x 3450mm under standard construction.  Larger sizes available by specification.


  • CE marked
  • BS EN 13241 – 1 (2005)
  • Electric operated roller doors
  • (89/106/EC; 98/37/EC; 89/336/EC)


  • Key Switch
  • Key Switch Security Box
  • Remote Control Unit c/w 2 No. Handsets
  • Photocells
  • Additional Remote Handsets
  • Rubber Seal (suitable for T Bar Bottom Bar only)
  • Top Brush
  • Side Brush
  • Canopy
